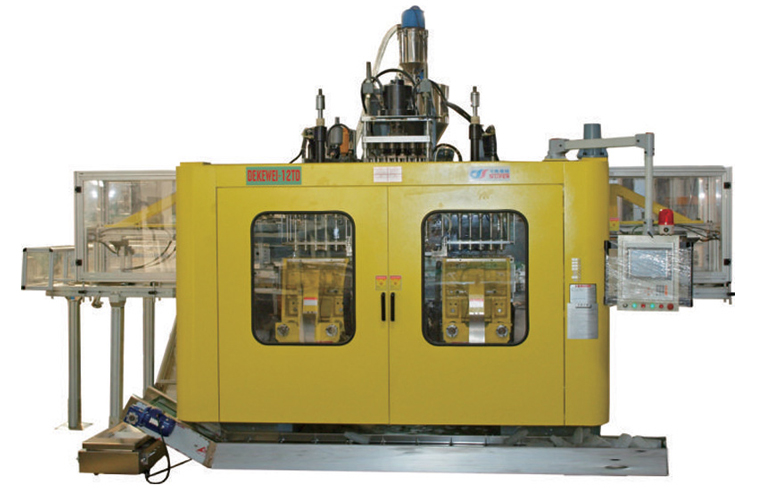

Product Details：
product manual:
1. Double mold frame, single die to eight die

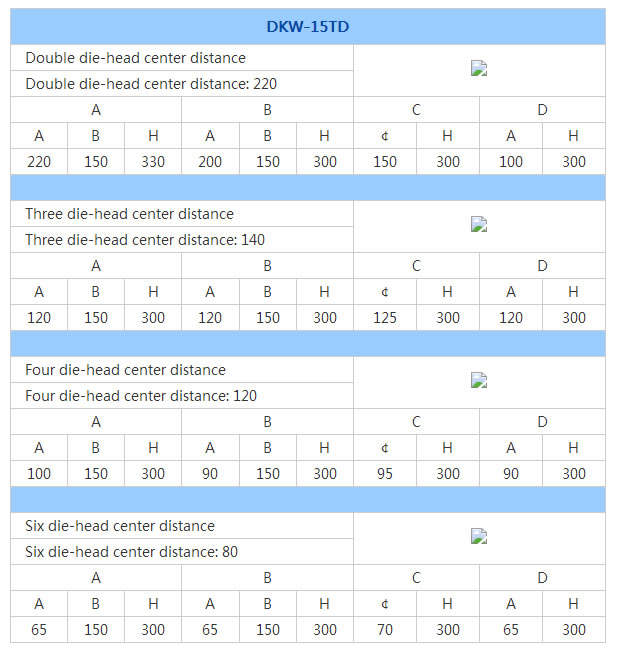

2. Die center distance: double head 220mm, three heads 140mm, four heads 120mm, six heads 80mm, eight heads 60mm
3. Single to six layers with transparent lines
4. Daily output (24 hours) can reach 1..50,000 to 100,000
5. Can produce 0.4-8L plastic hollow products
Technical Parameters
Screw diameter: Φ80mm
Screw ratio (length, diameter) 28:1
Screw speed (50HZ): 10-75r/min
Extrusion amount (PE): 120Kg/h
Barrel heating section: 5
Molding stroke: 600/700mm
Mode locking stroke: 180-550mm
Clamping force (160Bar): 15T
Dry cycle: 3.9S
Rubber thickness control: 100-300dpi
Cooling water consumption: 0.6M3/Min (0.3Mpa, 18°C)
Compressed air consumption: 2.0 M3, /Min (0.8Mpa)
Machine net weight (approximately): 15T

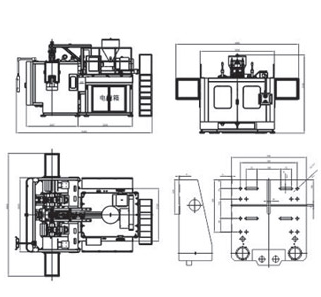

Mechanical size: 5480*3000*3160(mm)
Power consumption parameters:
Frequency conversion motor: 45KW
Screw heating power: 17.2KW
Hydraulic servo motor: 22KW+2.2KW
The maximum power consumption of the die: 90.4KW
