Product Details：
product manual:
1. Double mold frame, single die to six die

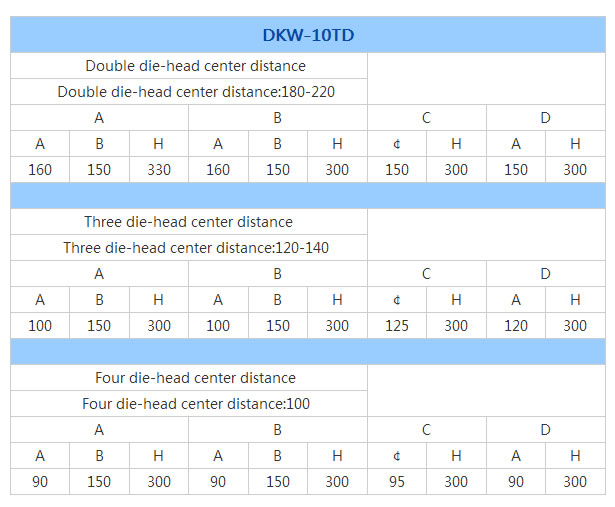

2. Die center distance: double head 180mm, three heads 120mm, four heads 100mm, six heads 60mm
3. Single to six layers with transparent lines
4. Daily output (24 hours) can reach 12,000 to 86,000

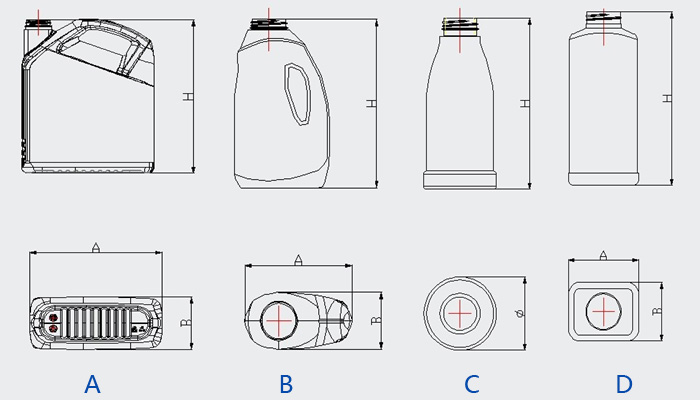

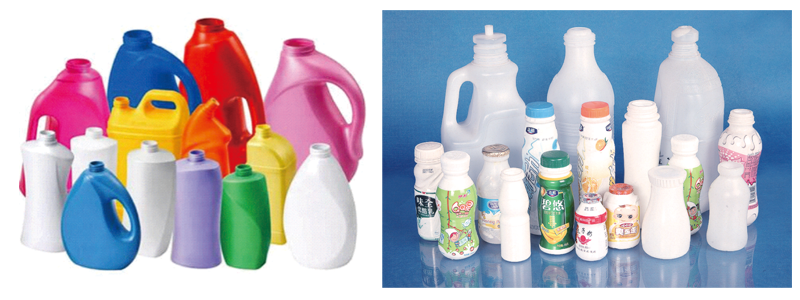

5. Can produce 0.3-5L plastic hollow products
Technical Parameters
Screw diameter: Φ70mm
Screw ratio (length, diameter) 26:1
Screw speed (50HZ): 10-80r/min
Extrusion amount (PE): 100Kg/h
Barrel heating section: 4
Molding stroke: 530mm
Mode locking stroke: 180-550mm
Clamping force (160Bar): 10T
Dry cycle: 3.4S
Rubber thickness control: 100-300dpi
Cooling water consumption: 0.6M3/Min (0.3Mpa, 18°C)
Compressed air consumption: 2.0 M3, /Min (0.8Mpa)
Machine net weight (approximately): 12T
Mechanical size: 5100*2700*3100 (mm)
Power consumption parameters:
Frequency conversion motor: 30KW
Screw heating power: 14KW
Hydraulic servo motor: 18.5KW+2.2KW
The maximum power consumption of the die: 72.7KW
